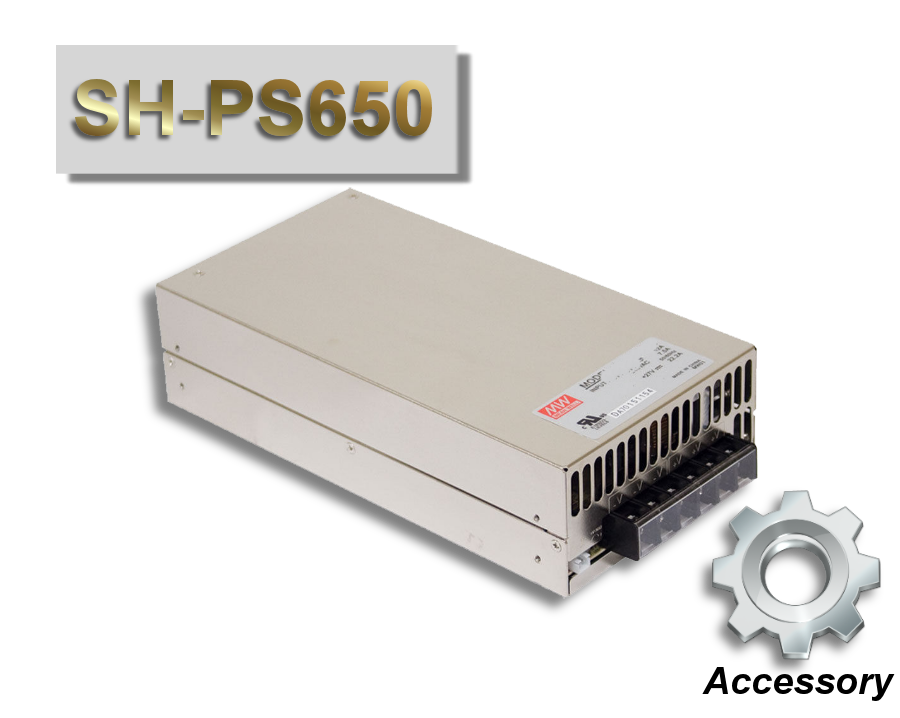

Meanwell SE-600 | 27 vdc 600w Power Supply

$80.00

Quantity
- +

600W 27V 22.2A Enclosed Switchable Power Supply

27 Volts @ 22.2 Amps

Features

  • AC input active surge current limiting
  • AC input range selected by switch (90-132 VAC / 180-264 VAC)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • High power density 4.9W/in³
  • Built-in remote sense function
  • UL, CUL approved
  • Low cost
Specification Value
Primary Output Voltage (VDC) 27
Output Current (A) 22.2
Maximum Output Power (W) 599.4
Family SE-600
Input Voltage (VAC) 90 to 132,180 to 264
Input Frequency 47 to 63
Maximum Input Current (A) 12
Output Connector Type Screw Terminal Block
Number of Outputs 1
Product Type AC to DC Power Supply
Efficiency (%) 87
Minimum Isolation Voltage 3000V
Operating Temperature-Min (Cel) -20
Operating Temperature-Max (Cel) 60
Length (inch) 9.7
Width (inch) 5
Height (inch) 2.5
Agency Approvals UL
Color Silver
Type Switch Selectable
Style Enclosed
