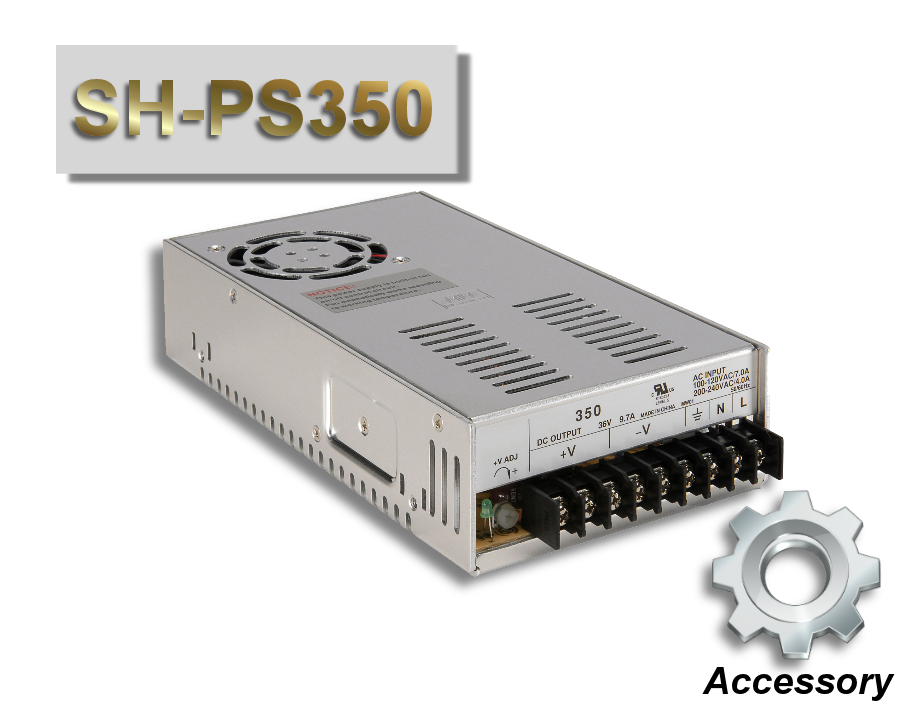

Meanwell RS-350 | 24 vdc 350w Power Supply

$45.00

Quantity
- +

350W Regulated Switching Single Output Power Supply


Output: 24 Volts @ 14.6 Amps

Features:

  • Input voltage range: 90-132 / 180-264VAC switch-selectable @ 47-63Hz, or 254-370VDC
  • Efficiency: 87%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • Withstand 300VAC surge input for 5 seconds
  • Built-in cooling Fan ON-OFF control
  • Built-in constant current limiting circuit
  • LED indicator for power on
  • Fixed switching frequency at 90kHz
  • 100% full load burn-in test
  • Size: 8.5"L x 4.5"W x 2.0"H
  • Weight: 2.4 lbs.
  • Specification Value
    Primary Output Voltage (VDC) 24
    Output Current (A) 14.6
    Maximum Output Power (W) 350.4
    Family NES-350
    Input Voltage (VAC) 90 to 132,180 to 264
    Input Frequency 47 to 63
    Maximum Input Current (A) 7
    Output Connector Type Screw Terminal Block
    Number of Outputs 1
    Product Type AC to DC Power Supply
    Efficiency (%) 87
    Minimum Isolation Voltage 3000V
    Operating Temperature-Min (Cel) -20
    Operating Temperature-Max (Cel) 60
    Length (inch) 8.5
    Width (inch) 4.5
    Height (inch) 2
    Agency Approvals UL
    Color Silver
    Type Switch Selectable
    Style Enclosed
