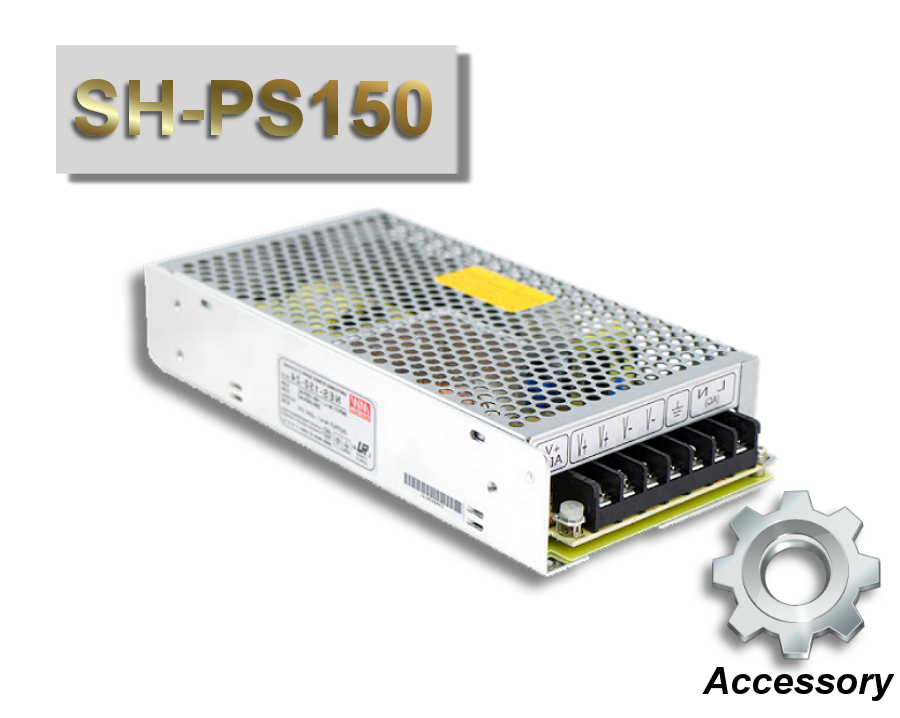

Meanwell RS-150 | 24 vdc 150w Power Supply

$30.00

Quantity
- +
150W Single Output Switching Power Supply
24 Volts @ 6.5 Amps
Features:
  • AC input range selectable by switch
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • High efficiency, long life and high reliability

SPECIFICATION

Specification
Value
Primary Output Voltage (VDC)
24
Output Current (A)
6.5
Maximum Output Power (W)
156
Family
NES-150
Input Voltage (VAC)
90 to 132,180 to 264
Input Frequency
47 to 63
Maximum Input Current (A)
3
Output Connector Type
Screw Terminal Block
Number of Outputs
1
Product Type
AC to DC Power Supply
Efficiency (%)
86
Minimum Isolation Voltage
3000V
Operating Temperature-Min (Cel)
-20
Operating Temperature-Max (Cel)
60
Length (inch)
7.8
Width (inch)
3.9
Height (inch)
1.5
Agency Approvals
EN/TUV/UL
Color
Silver
Type
Switch Selectable
Style
Enclosed
