Nicolaudie
eNODE-4 | Nicolaudie DMX distribution over Ethernet
- Regular Price
- $395.00
- Sale Price
- $395.00
- Regular Price
Sold Out
- Unit Price
- per

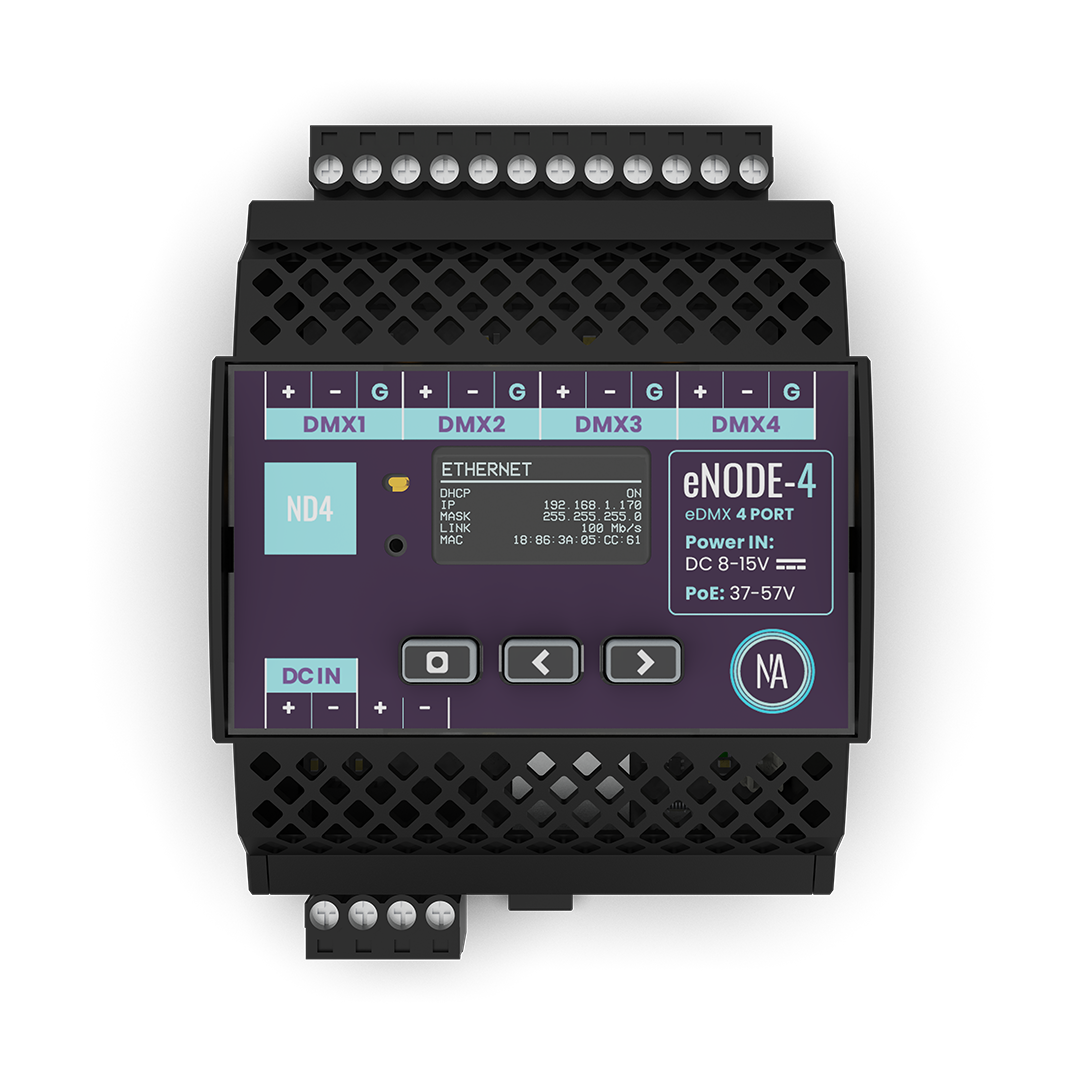

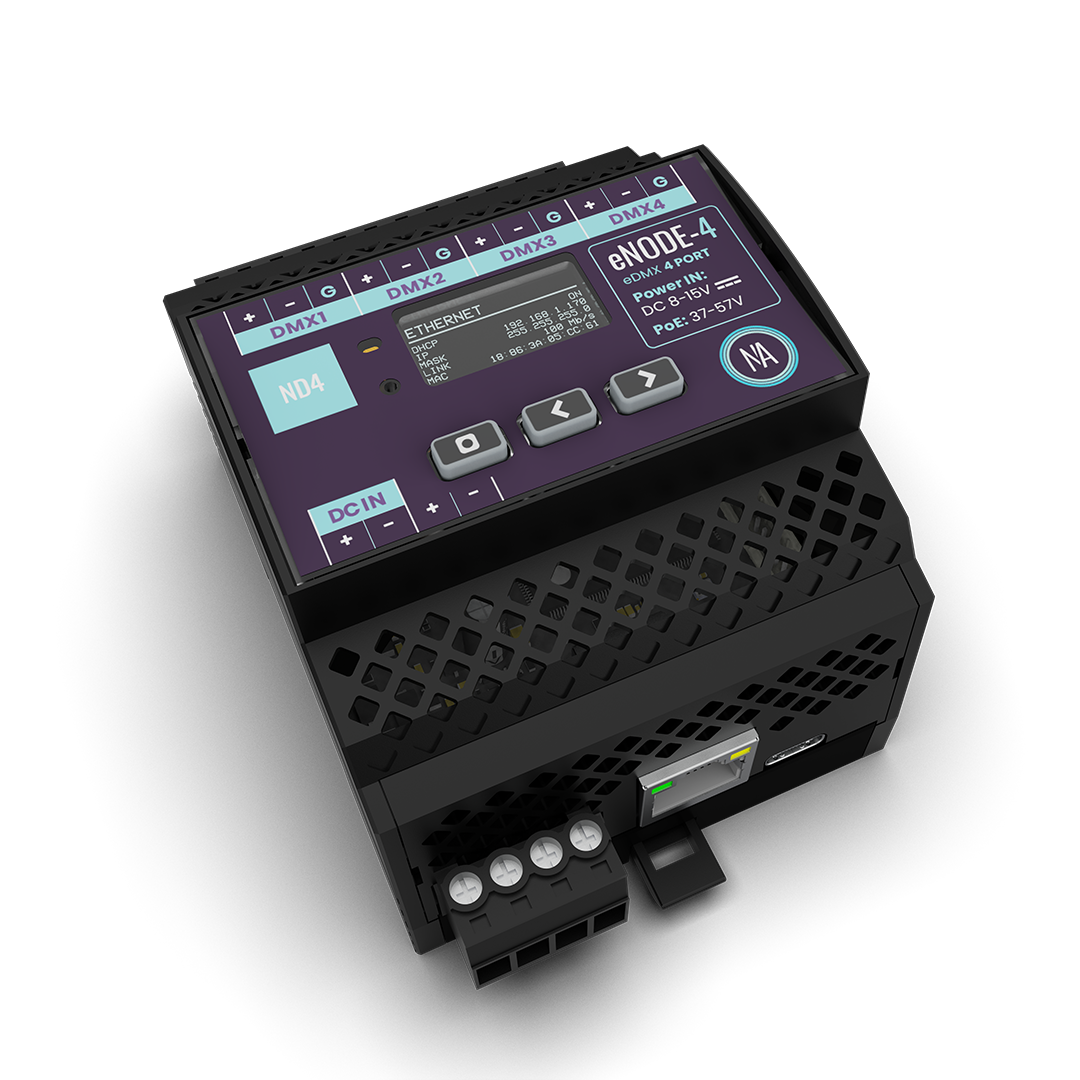

Designed to streamline your lighting control installations, this new eDMX node features 4 DMX outputs and PoE (Power over Ethernet) in a compact, DIN-rail form factor. Once configured through the ESA Pro 2 software, eNODE-4 integrates with the DINA-DR1, allowing you to extend the number of DMX outputs through sACN.
Easy DMX Patching
Discover your eNODE-4 over the network with ESA Pro 2 software (from v2.5.1), then patch its physical ports to seamlessly distribute your project's DMX universes.
On-Screen Device Status
The device's OLED screen allows you to easily view key settings—such as the IP address, data status, and firmware version—with simple 3-button navigation.
Configure with Hardware Manager
Use the Hardware Manager program to update firmware, configure IP settings, test DMX outputs, and manage advanced device configurations.
The 2026 update now offers detachable connectors for easier installation and service
Data Sheet:
Specifications
| Input Power | PoE or 8-15 VDC |
| OS | Android |
| Programmability | PC, Mac |
| Connections | Dry Contact |
| Protection | IP10 |
| Environment | -40C to 60C |
| Dimensions | 70x91x62mm |
| Weight | 150g |
Output
DMX
4 ports (patched with ESA Pro 2)
Hardware compatibility
eDMX controller
DINA-DR1 and DINA-DR1 LITE
Scalability
Up to 50 eNODE-4 on the same network
