DINA-DR2-LITE | Nicolaudie Network Lighting Controller 512ch, Din Rail, Limited
512ch, Din Rail, Limited

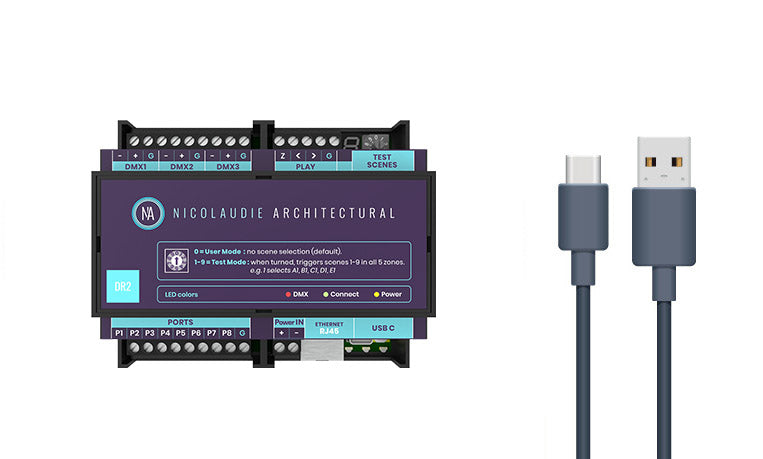

DIN rail mounted stand alone lighting controller. 512 DMX channels control (upgradable to 1536). Programmable over USB or Ethernet with ESA2 or ESA Pro 2 software (Mac or Windows). Compatible with Android/iOS mobile apps (Easy Remote Pro, LightPad, Arcolis). Delivered with a USB Type C cable. CAUTION: 12V DIN rail power supply in option. Made in PRC
The Nicolaudie DINA-DR2-LITE is the heart of the lighting system. The ethernet capable standalone controller is perfect for live or stand alone programmed lighting scenes. Easily connect the controller into your network over ethernet and program over ethernet or USB-C. Dry contact port triggering, for architectural applications trigger option with additional hardware.
Whether the job calls for extremely elaborate DMX programming, or simple color fades, with the ease. Each interface supports single or multiple DMX universes, depending on the type of interface. The DINA-DR2-LITE can be connected through USB or Ethernet.

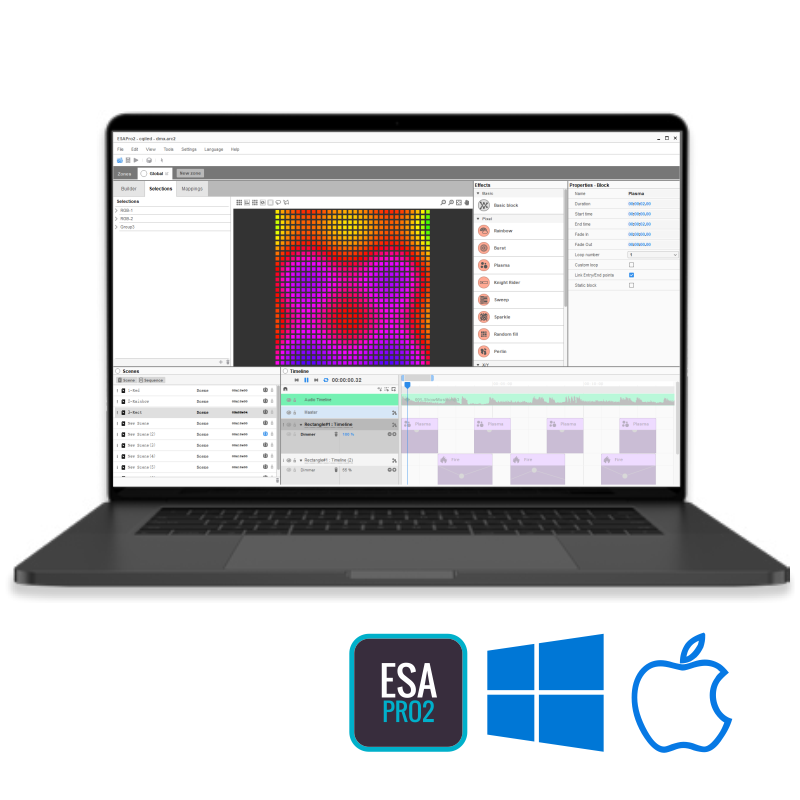

Programmable with ESA Pro 2 software or with Arcolis application, the DINA-DR2-LITE features the new Nicolaudie Stand Alone engine (NSA) offering some great possibilities (multi-zone, extended triggers, 16-bit channels management...).

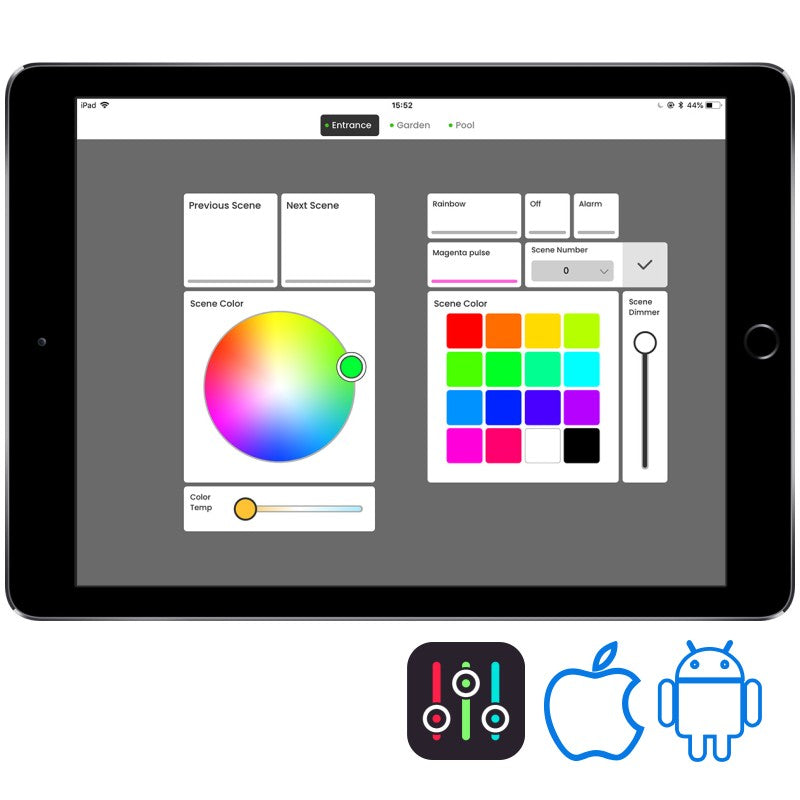

Thanks to its Ethernet connection, the DINA-DR2-LITE can be controlled from our Arcolis Remote Pro or Arcolis Remote applications as well as connected to the Internet and operated with the LS Cloud service.
- 99 Scenes Capable
- 512+ expandable standalone DMX channels
- Smart phone/Table Control (iPhone/iPad/Android)
- Micro SD card slot - for saving writing to systems interface
- 5.5V DC Power Supply
- Unlimited memory Capacity
- ESA Pro 2 and Sunlite Architectural & Building Software
- 2 DMX Universes
- USB and Ethernet control
- Port Triggering
Time Triggering with daylight saving and sunset/sunrise functions
|Dimensions||106 x 91 x 59 mm|
|Output Connection||Hardwire dry contact|
|Housing||Polymer Metal Plastic Housing|
|Output Signal||DMX Data|
|Ingress Protection Rating||IP20|
|Memory||On board Micro SD Card Slot|
|Mount Type||Rail Mount|
180g / 6.35 ounces Shipping
