DINA-DR1-LITE | Nicolaudie Network Lighting Controller
1024ch, Din Rail, Limited, ESA2, ESA PRO2, Arcolis

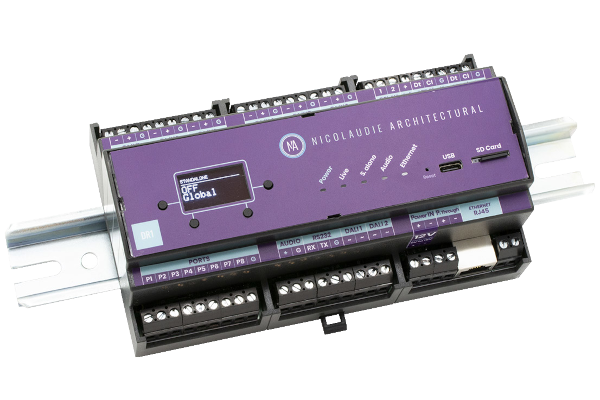

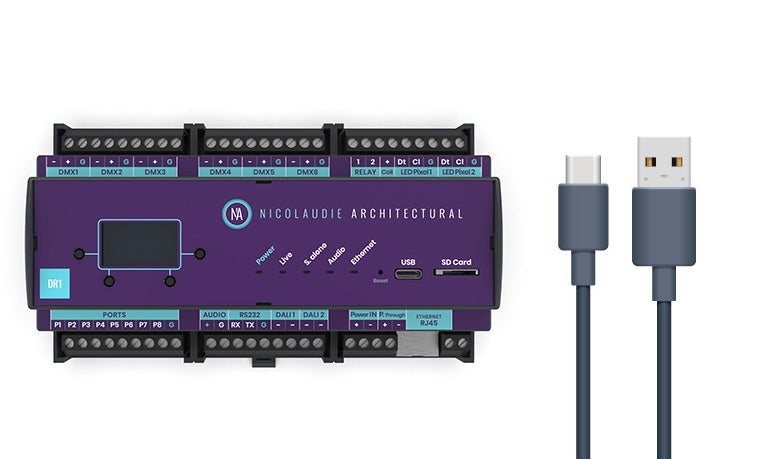

DIN rail mounted stand alone lighting controller. 1024 DMX channels control (upgradable to 3072). DALI, eDMX, LED PIXEL protocols in option. Programmable over USB or Ethernet with ESA2 or ESA Pro 2 software (Mac or Windows). Compatible with Android/iOS mobile apps (Easy Remote Pro, LightPad, Arcolis). Delivered with a USB Type C cable. CAUTION: 12V DIN rail power supply in option.
The Nicolaudie DINA-DR1-LITE is the heart of the lighting system. The ethernet capable standalone controller is perfect for live or stand alone programmed lighting scenes. Easily connect the controller into your network over ethernet and program over ethernet or USB-C. Dry contact port triggering, for architectural applications trigger option with additional hardware.
Whether the job calls for extremely elaborate DMX programming, or simple color fades, with the ease. Each interface supports single or multiple DMX universes, depending on the type of interface. The DINA-DR1-LITE supports 3 DMX universes and can be connected through USB or Ethernet.
Built on the NSA (New Stand Alone) engine, the DR1 offers multi-zone show control as well as advanced and flexible triggering and integration possibilities: Time, Audio, Ports, RS232, TCP, DALI...
This is the first lighting controller offering an all-in-one solution with multiple protocols. The DR1 can output DMX, Art-Net, SACN, DALI, LED pixel and create a control gateway for the most demanding dynamic lighting installations.

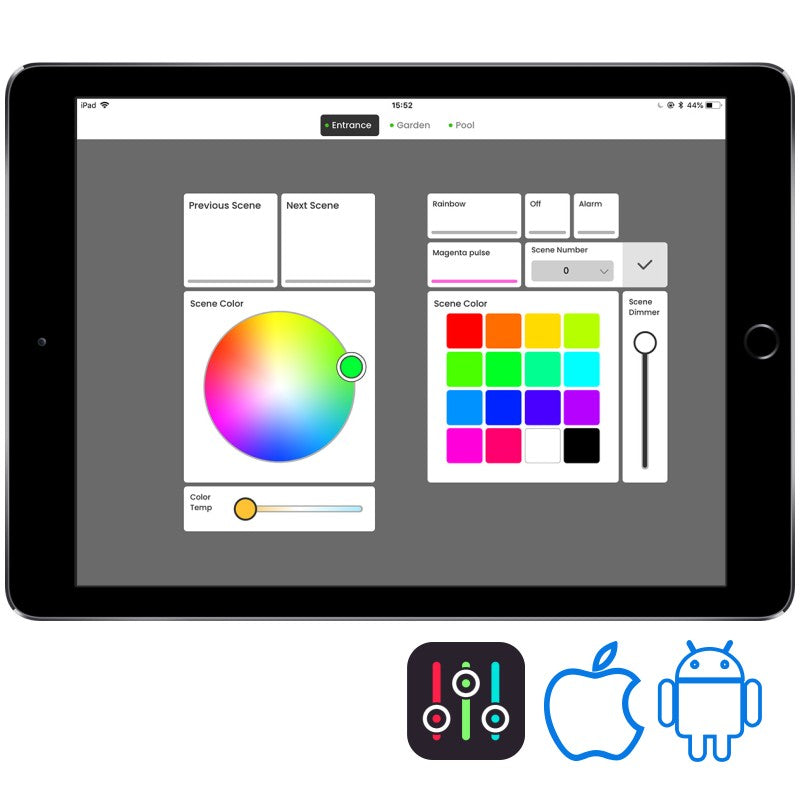

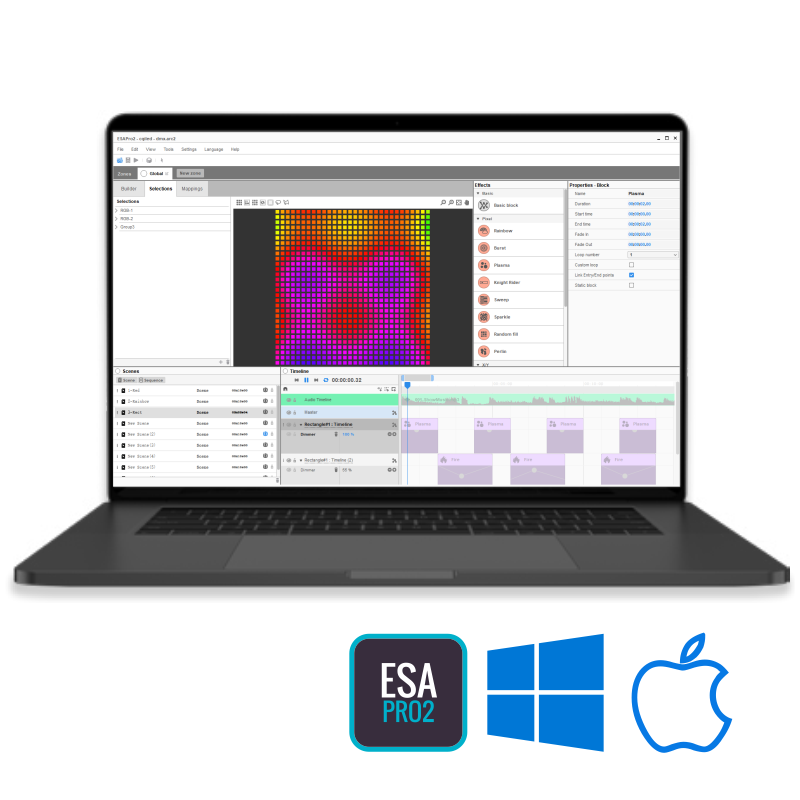

There is nothing easier than programming the DINA-DR1: connect the controller to your computer (PC or Mac) over USB/Ethernet and start the ESA2 or ESA Pro2 software. No computer available? No problem, connect the DINA-DR1 to the local network and use the on-site programming app Arcolis Designer to program the device with your smartphone or tablet.
Some features may require future firmware updates, see the specifications for estimated availability
- 2000 Scenes Capable
- 1024 expandable standalone DMX channels
- 20-zones
- Smart phone/Table Control (iPhone/iPad/Android)
- Micro SD card slot - for saving writing to systems interface
- 5.5V DC Power Supply
- Unlimited memory Capacity
- ESA Pro 2 and Sunlite Architectural & Building Software
- 2 DMX Universes
- USB and Ethernet control
- Port Triggering
-
Time Triggering with daylight saving and sunset/sunrise functions
SPECIFICATIONS:
| Item Number | DINA-DR1-LITE |
| Input Voltage | 5.5-10 VDC 300mA |
| Dimensions | 160 x 91 x 62 mm |
| Output Connection | XLR 3 pin Female / 5 pin DIN Female |
| Housing | Polymer Metal Plastic Housing |
| Output Signal | DMX Data |
| Ingress Protection Rating | IP20 |
| Memory | On board Micro SD Card Slot |
| Mount Type | Rail Mount |
| Weight |
317g / 11.18 ounces Shipping |
