Nicolaudie

DINA-DR1 | Nicolaudie Network Lighting Controller

$2,395.00

Quantity
- +

3072ch, Din Rail, High end, ESA2, ESA PRO2, Arcolis

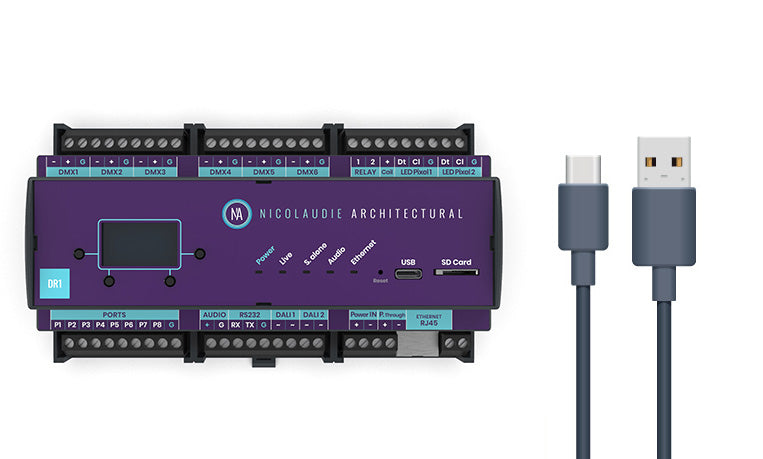

DIN rail mounted stand alone lighting controller. 3072 channels control (DMX, eDMX, LED PIXEL), 2 DALI universes. Programmable over USB or Ethernet with ESA2 or ESA Pro 2 software (Mac or Windows). Compatible with LS Cloud service and Android/iOS mobile apps (Easy Remote Pro, LightPad, Arcolis). Delivered with a USB Type C cable. CAUTION: 12V DIN rail power supply in option.



The Nicolaudie DINA-DR1 is the heart of the lighting system. The ethernet capable  standalone controller is perfect for live or stand alone programmed lighting scenes. Easily connect the controller into your network over ethernet and program over ethernet or USB-C. Dry contact port triggering, for architectural applications trigger option with additional hardware.

Whether the job calls for extremely elaborate DMX programming, or simple color fades, with the ease. Each interface supports single or multiple DMX universes, depending on the type of interface. The DINA-DR1 supports 3 DMX universes and can be connected through USB or Ethernet.

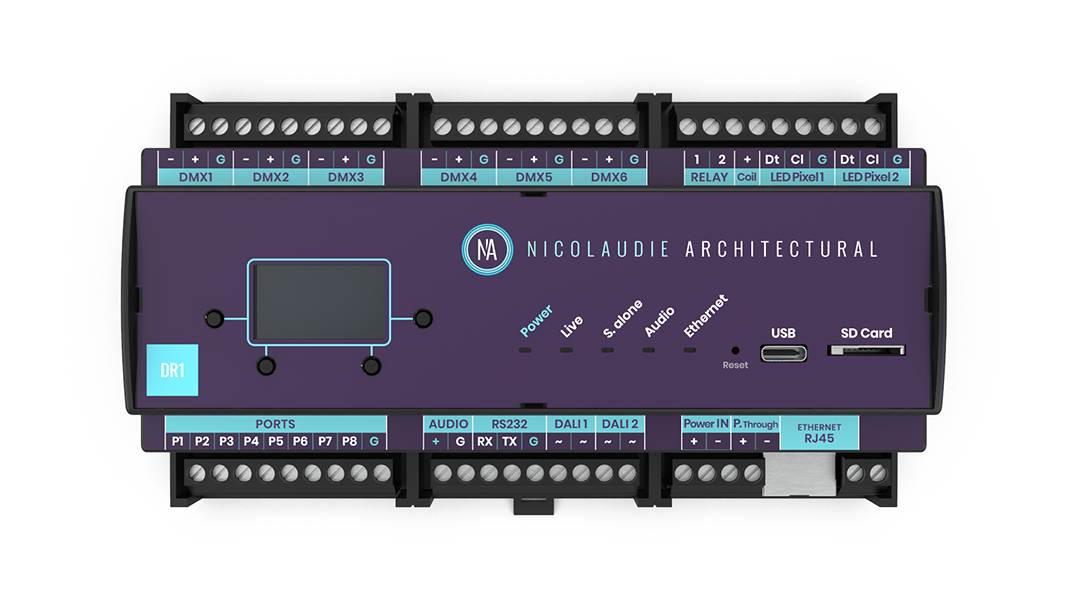

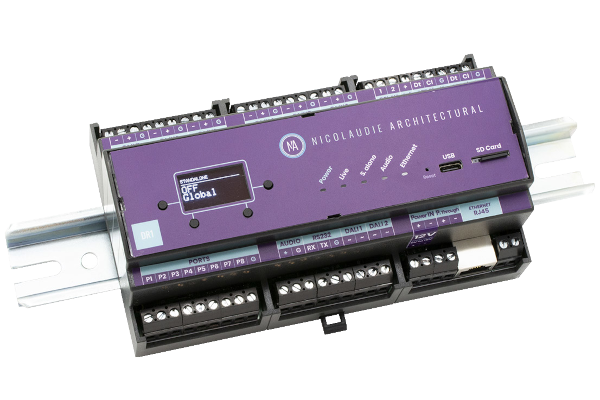

Designed for din-rail mounting, the DR1 is a strong and durable solution for fixed lighting installations. Up to 3072 channels (1024 RGB or 768 RGBW fixtures) can be controlled over several protocols : DMX 512, Art-Net or SACN, LED Pixel, DALI. Multiple controllers can be connected and synchronized for large-scale lighting installation.

Built on the NSA (New Stand Alone) engine, the DR1 offers multi-zone show control as well as advanced and flexible triggering and integration possibilities: Time, Audio, Ports, RS232, TCP, DALI...

This is the first lighting controller offering an all-in-one solution with multiple protocols. The DR1 can output DMX, Art-Net, SACN, DALI, LED pixel and create a control gateway for the most demanding dynamic lighting installations.

There is nothing easier than programming the DINA-DR1: connect the controller to your computer (PC or Mac) over USB/Ethernet and start the ESA2 or ESA Pro2 software. No computer available? No problem, connect the DINA-DR1 to the local network and use the on-site programming app Arcolis Designer to program the device with your smartphone or tablet.

Some features may require future firmware updates, see the specifications for estimated availability
Features:
  • 2000 Scenes Capable
  • 3072 expandable standalone DMX channels
  • 20-zones
  • Smart phone/Table Control (iPhone/iPad/Android)
  • Micro SD card slot - for saving writing to systems interface
  • 5.5V DC Power Supply
  • Unlimited memory Capacity
  • ESA Pro 2 and Sunlite Architectural & Building Software
  • 2 DMX Universes
  • USB and Ethernet control
  • Port Triggering
  • Time Triggering with daylight saving and sunset/sunrise functions



SPECIFICATIONS:

 Item Number  DINA-DR1
 Input Voltage  5.5-10 VDC 300mA
 Dimensions 160 x 91 x 62 mm
 Output Connection  XLR 3 pin Female / 5 pin DIN Female
 Housing  Polymer Metal Plastic Housing
 Output Signal  DMX Data
 Ingress Protection Rating  IP20
 Memory  On board Micro SD Card Slot
 Mount Type  Rail Mount
 Weight

317g / 11.18 ounces Shipping





Data sheet   Certification




 windows software download mac downloadandroid download
