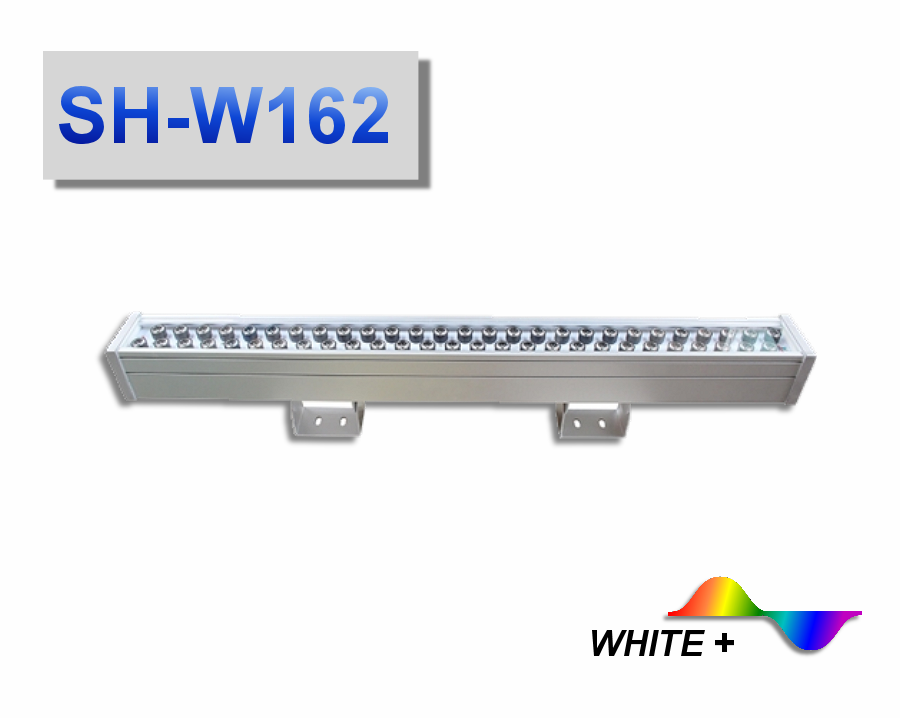

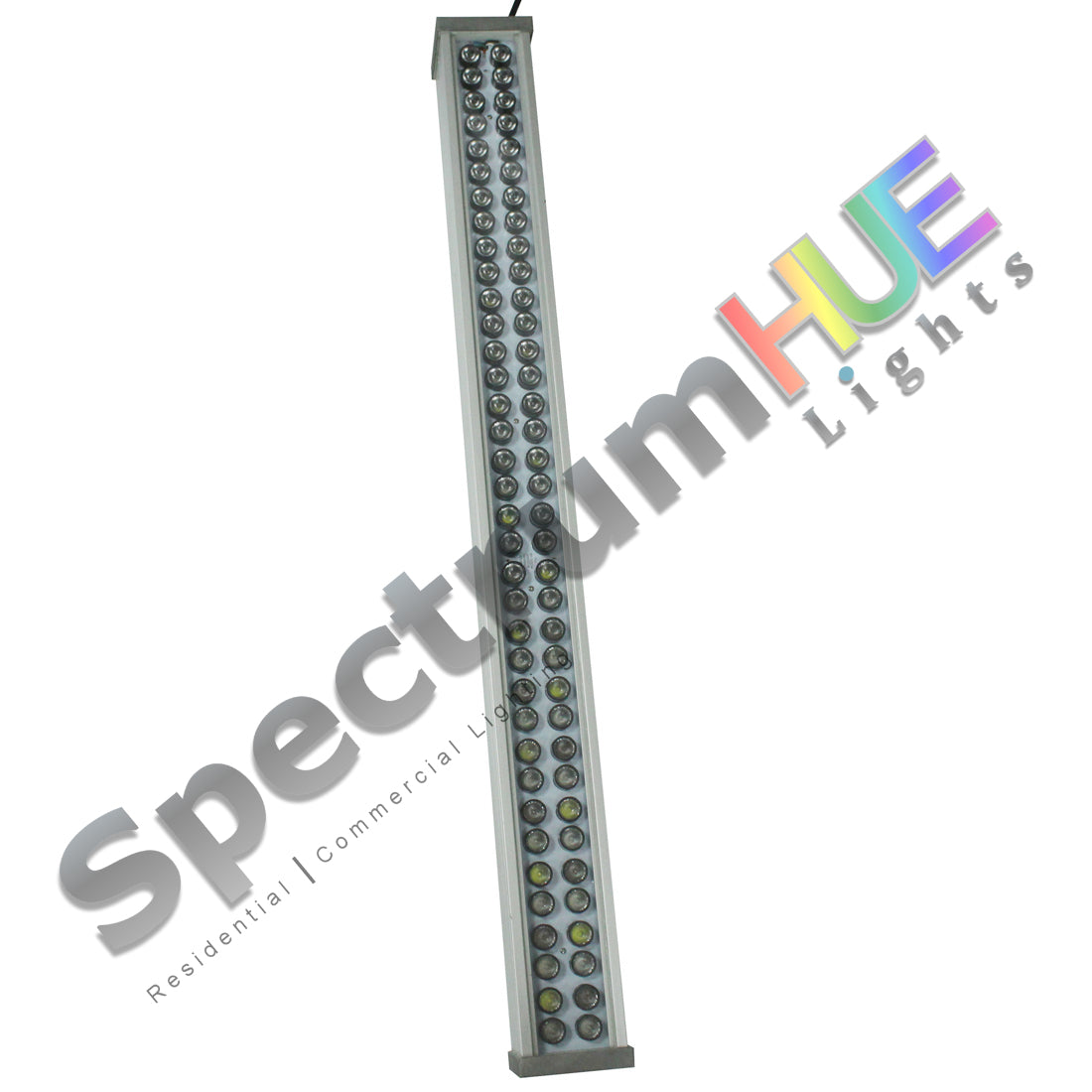

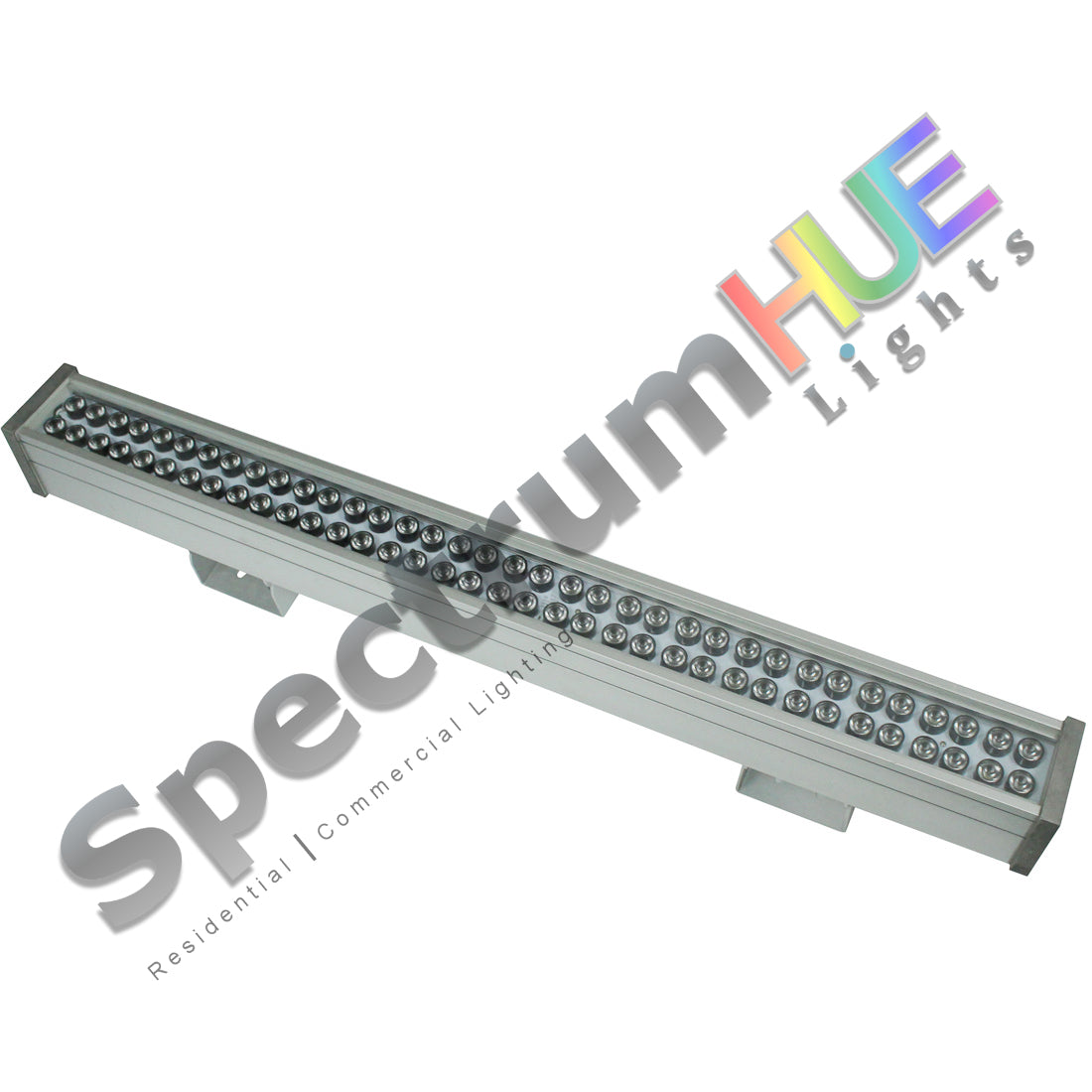

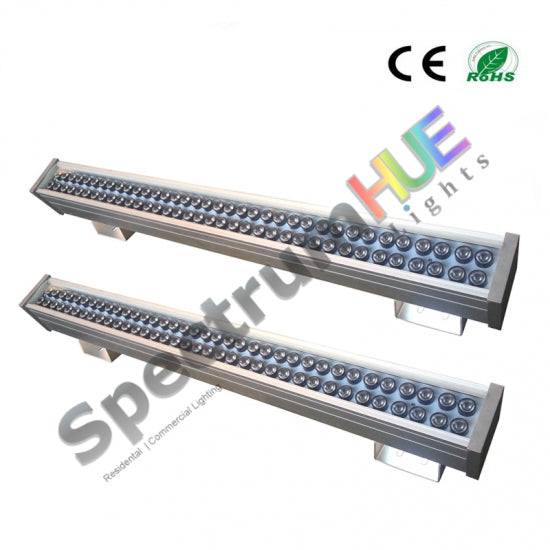

SH-W162 Wall Washer RGB Bar | 3.25 feet

$385.00

Quantity
- +
Spectrum HUE Wall Washer Series is our linear RGB fixture series and capable of classic white and over one million colors. Elegantly crafted from high quality commercial grade materials, housed in 6063 aluminum and stainless steel. Multi layered and waterproof-sealed Impact-resistant high tempered glass, for wet locations (IP67 rated). Engineered heat-sink radiator fins, for optimal cooling to maintain long lifespan. This robust fixture is equipped with Cree or Edison Chip LEDs in RGB. Each fixture is high lumen output, and ultra efficient with low energy consumption. Proprietary built in constant current driver, instant warm up, no flash and fast response of DMX512 commands from network controllers. Adjustable fixture angle bracket to adjust the beam for ideal lighting needs. DMX network capable, allows you to connect to a compatible network controller for single color effects, multi color effects, custom lighting scenes, or light shows creating a kaleidoscope of color effects. Each fixture is sealed and 100% waterproof, rated IP67 and Rohs certified. Paired with one of our Spectrum HUE Lighting controllers or DMX compatible controller, you can individually control each fixtures color output, or create a scene of color themes for any event, or holiday, from a local computer or smartphone. Spectrum HUE controller-included software allows you to create colors and deploy scenes from a tablet or smartphone giving you ultimate versatility to control your lighting network!  The fixture is ideal for wall washing, color grazing, signage, large scale architectural illumination, and a variety of residential or commercial placements. Whether you have a small restaurant or large hotel and resort, Spectrum HUE Wall Washer Light series will beautifully enhance your property, at any scale!

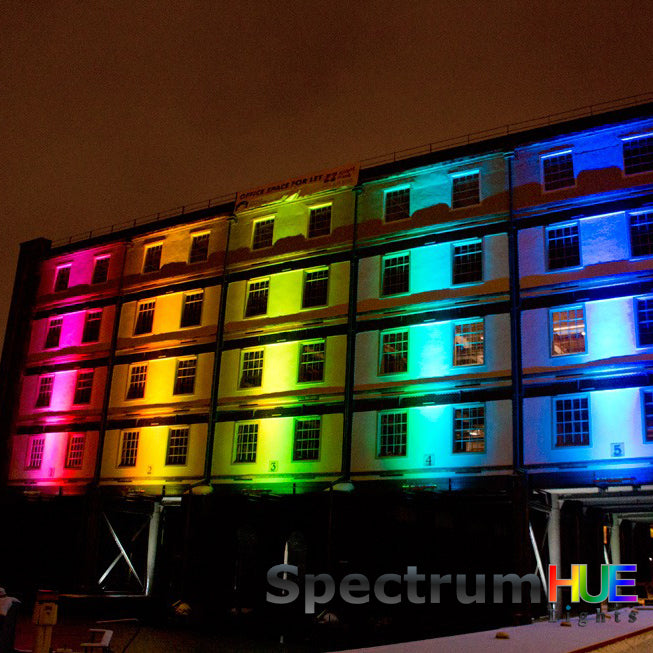

Enhance and Illuminate your venue or business with Spectrum HUE Wall Washer Lights!

Applications for Wall Washer Lighting:
  • Restaurants Lighting
  • Landscape Lighting
  • Bridges Illumination
  • Marinas Illumination
  • Wall Grazing
  • Buildings and Large scale architecture
  • Stadiums and Coliseums
  • Hotels Lighting
  • Airport Lighting
  • Alcove and Accent Lighting
  • Concerts and Events Lighting
Features of SH-W108 Wall Washer Linear RGB Fixture:
  1. High quality die-casting 6063 Aluminum light body for minimum oxidation for lasting elegance of the fixture. Excellent heat dispersing performance. Individually molded for each lamp housing.
  2. Sealed tempered glass with silicone gaskets to reach IP67 waterproof rating.
  3. Using ultra-bright high power led chips and proprietary built-in constant voltage power supply driver .
  4. PMMA optical lens. with beam angle 8 -90 degrees allowing different beam angles.
  5. Working voltage is: DC 36V or AC110V-240V.
  6. Single Color with steady-on or Auto-control color change synchronously with DMX512 network lighting controller.



SPECIFICATIONS:

 Item Number

 SH-W162

 Input Voltage

 DC36V | AC110-230V

 Input Current

 3.5A

 Driver Location

 Internal Driver and DMX decoder

 Output Power

 162W

 Luminous Flux Output

 80-90LM/W Epistar, 90-100LM/W for CREE

 Rendering Index

 >70Ra (white color)

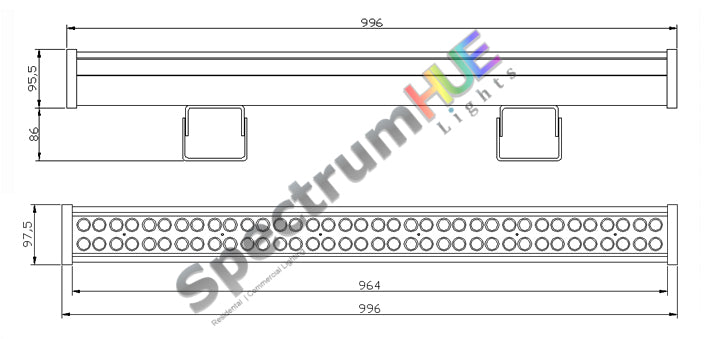

 Body Size

 W97.5*H95.5*L1000mm  (H181mm with Bracket)

 Beam Angle

 10--90 Degree or 15*80/ 10*45 Degree (Varies)

 Light Source

 High power 3W Epistar LED/CREE LED

 Operating Temperature

 -35~ +45 Degrees Celsius

 Storage Temperature

 -30~ +65 Degrees Celsius

 Color Selection

 White (2700-6500K), Red, Green, Blue, RGB, + Million Colors

 Housing Material

 6063 Aluminum

 LED’s Operating Life

 ≥45,000 Hours

 IP Rate

 IP65

 Cable Wire

 1 Meter 2core/3core/4core Female-Male Cable / or Hardwire

 RGB Control Source

 Auto Color Change /DMX512 Controllable



Also Available in: 12 Watt, 18 Watt, 36 Watt, 48 Watt in 1.6 ft Length

Notice:Requires DMX compatible controller to control color output. SLESA-UE7

Different wiring/connections for LED wall washer:

Available Sizes:  162W, 108W, 81W, 90W, 72W, 36W, 24W
