Spectrum HUE Lights

SH-DMX01 | DMX Amplifier

$22.00
$22.00
Sold Out
Spectrum HUE DMX512 amplifier. Required for network control of RGB lighting. Amplifies DMX data signal from the DMX controller to lighting fixtures. Cable runs up to 125 feet, then a second SH-DMX01 amplifier will be needed in increase the signal.



  • Amplifies DMX data signal from DMX source controller
  • Extends the data transmission distance of wired cable runs
  • Increases DMX signal driver

SPECIFICATIONS:

 Item Number  SH-DMX01
 Input Voltage  DC12V - 24V
 Input Current  320-350mA
 Output Power  2 Pin Green Terminals / 12-24VDC - DMX Data Out
 Housing  Sheet Metal Black Powder Finishing
 Output Signal  DMX Data
 Ingress Protection Rating  IP20
 Storage Temperature  -30°C- 60°C

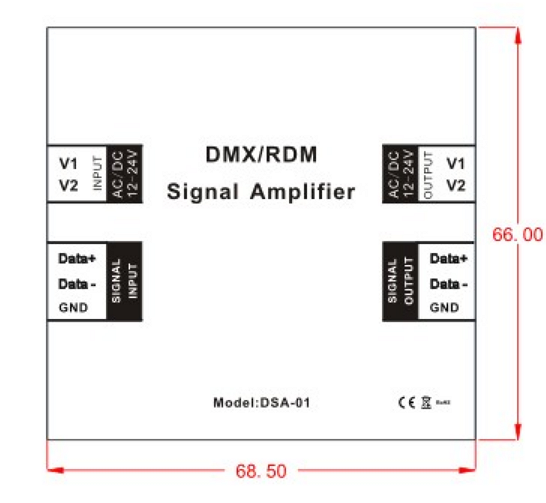

 Dimensions  L72 x W66 x H28MM
 Weight  150G





Notice: Wireless version available for wireless applications: SH-DMX02
